Sleeve Quality Inspection System

Ultra accurate sleeve scan with Zumbach laser

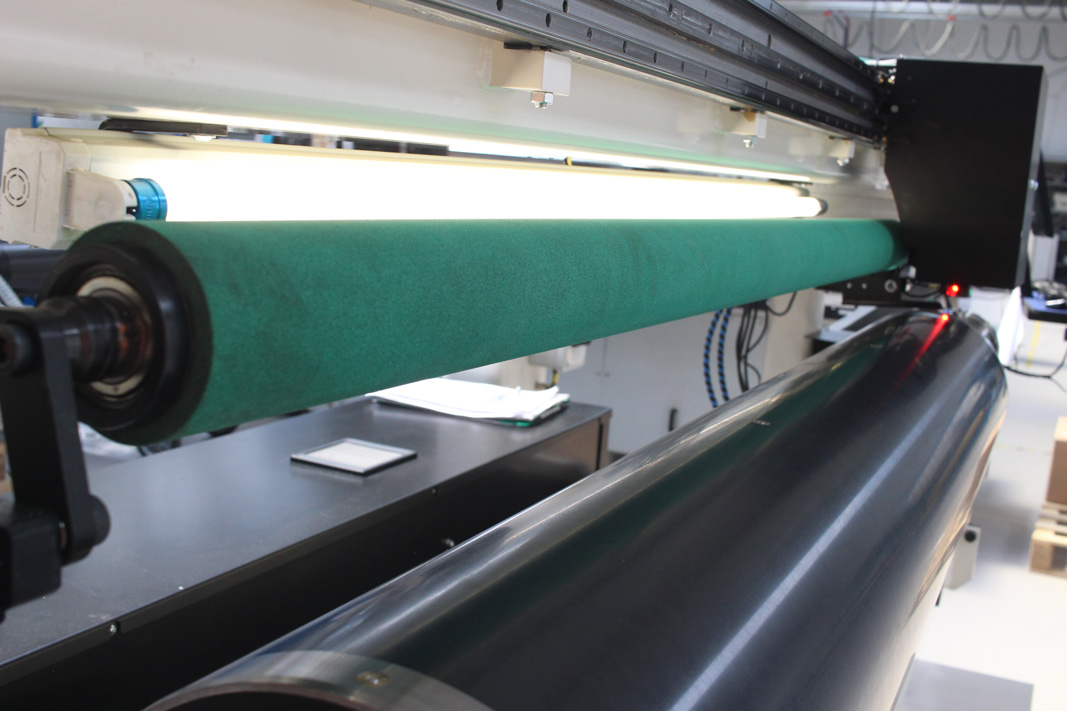

The Sleeve Quality Inspection System (SQIS) uses the Zumbach laser to scan the 3D landscape of self-adhesive sleeves with an accuracy of 1 micron. This machine can now scan and create a report of the condition of Tesa Twinlock or Polymount sleeves. The SQIS was previously referred to as TIR Sleeve Measurement System with Zumbach Laser.

  1. Highly accurate sleeve quality measurement
  2. Reduced press downtime
  3. Detailed measurement report
  4. Absolute diameter measurement
  5. User-friendly interface for easy inspection
Download the brochure


Automatic moving HD cameras

Ultra high definition cameras moving according to the stored data in the system.


Zumbach laser

The Zumbach laser scans and analyzes the 3D landscape of the sleeve with an accuracy of 1 micron.


Vertically moving cylinder

It allows a fixed distance of the cameras to the plate, so no focusing of the lenses is needed.


Advanced software

Latest AV MOM software for analyzing and storing information about the condition of the sleeve.


Camera for EasyReg

Using the calibration data by scanning the mandrel and the sleeve, the Easyreg sign is detected.
