Worldwide Flexo
Sleeve Solutions

Back to Top
Printing Sleeves Mounting Adapters Supporting Equipment Product Packages
Specifications
Tolerance
Guaranteed to have a tolerance on diameter of +/- 0.020 mm / < 0.001 in.
Precision-grinding
TIR < 0.020 mm/ 0.001 in, measured on a carrier/cylinder with a TIR ≤ 0.005 mm/ 0.0002 in.
Outer Surface
Tech Guard outer layer, smooth with a polished finish.
Repeat Length
240 – 1500 mm / 9.449 – 59.055 in
Register Line
Standard 1x zero axial line included. Additional axial and/or radial lines on request.
Register Slot
Option to custom order with single or multiple register slots on one or both sides of sleeve.
Mounting
On air cylinders/carriers with minimum air pressure of 6 bar and an air-flow of 12 liters/second.
Wall Thickness
0.9 – 195 mm (thicker upon request) / 0.035 – 7.677 in
Sleeve Length
Maximum length of 1800 mm / 70.87 inches.
Temperature
A maximum operating temperature of 80 degrees Celsius (176 degrees Fahrenheit)
Chemical Resistance
Resistant against all solvents used in the flexographic industry for plate cleaning.
Cleaning Advice
Clean with ethyl alcohol mixed with maximum 15% ethyl acetate.
Label
The dimensional specifications are shown on the label inside the Tech Sleeves.

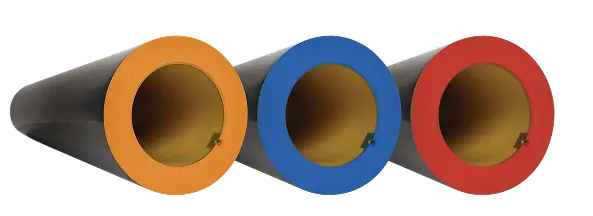

Printing Sleeves

View Brochure
Tech Standard
The gold standard in efficiency. This sleeve is the perfect balance of performance and cost efficiency. Ideal for all standard printing applications. The most efficient printing sleeve to get the job done. ​
View Product
Tech Pro
Designed for high-speed and complex jobs. Engineered for demanding printing environments. Ideal for high-speed printing, complex jobs and maximizing output on new presses.
View Product

Mounting Adapters

View Brochure
Tech Bridge
A premium mounting adapter built for durability in demanding print environments. Made from the same strong materials as the Tech Sleeve. Available in Separate Air and Air-Through versions, with dual metal end rings for added protection.
View Product
Tech Carbon & Tech Carbon+
Engineered for high-speed flexo printing with a high-modulus carbon fiber core. Its low deflection minimizes press bounce, ensuring optimal print stability and registration accuracy. Rigorously tested, it integrates seamlessly with Tech Sleeves for precise, repeatable results.
View Product

Supporting Equipment

View Brochure

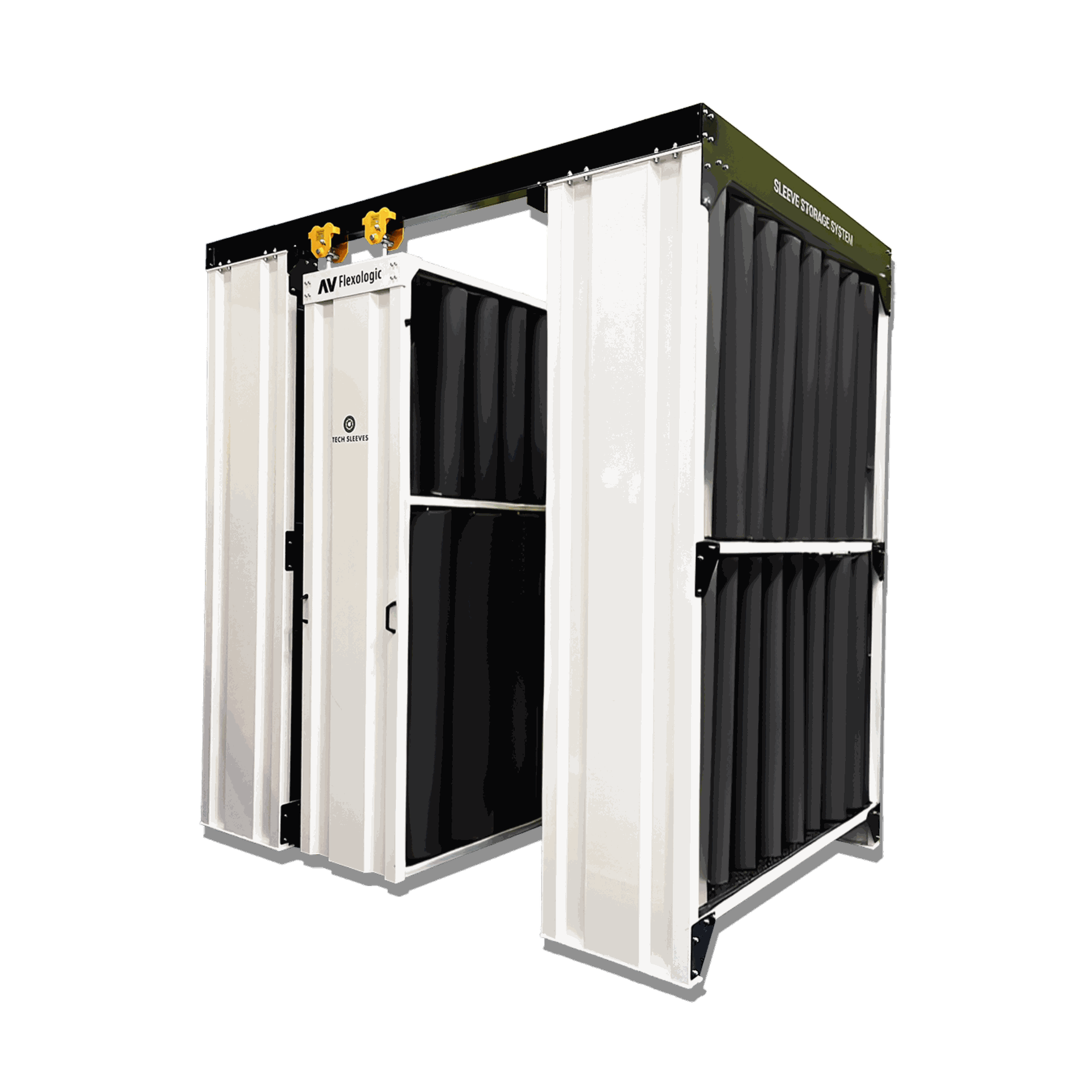

Sleeve Storage System
The Customizable Sleeve Storage System offers the highest protection for flexo printing sleeves. The vertical storage prevents sleeve damage and extends the lifetime of the sleeves.
View Product

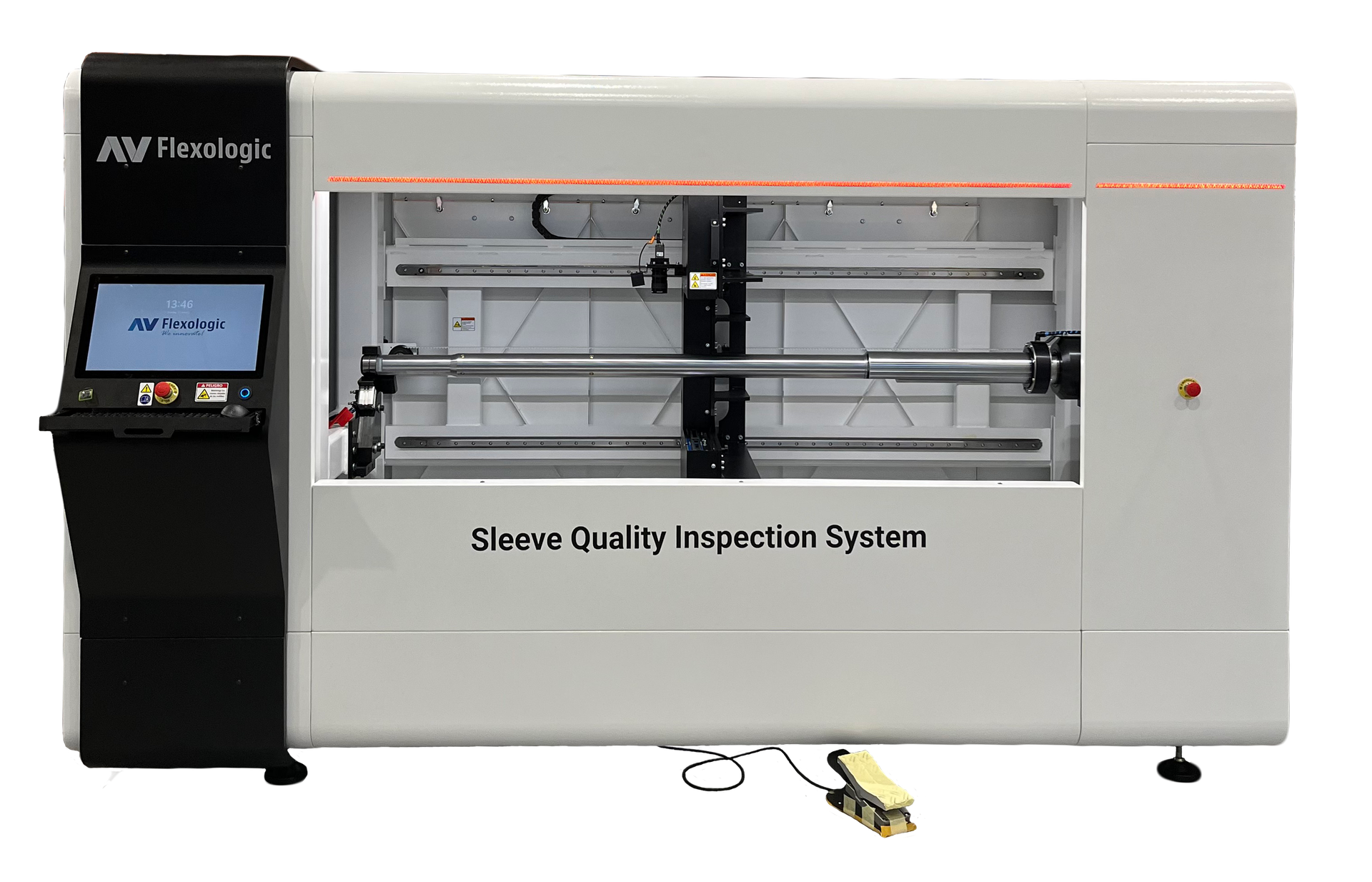

TIR with Zumbach laser
The TIR analyses the quality of the self-adhesive printing sleeves using the Zumbach laser (1μm accuracy).
View Product

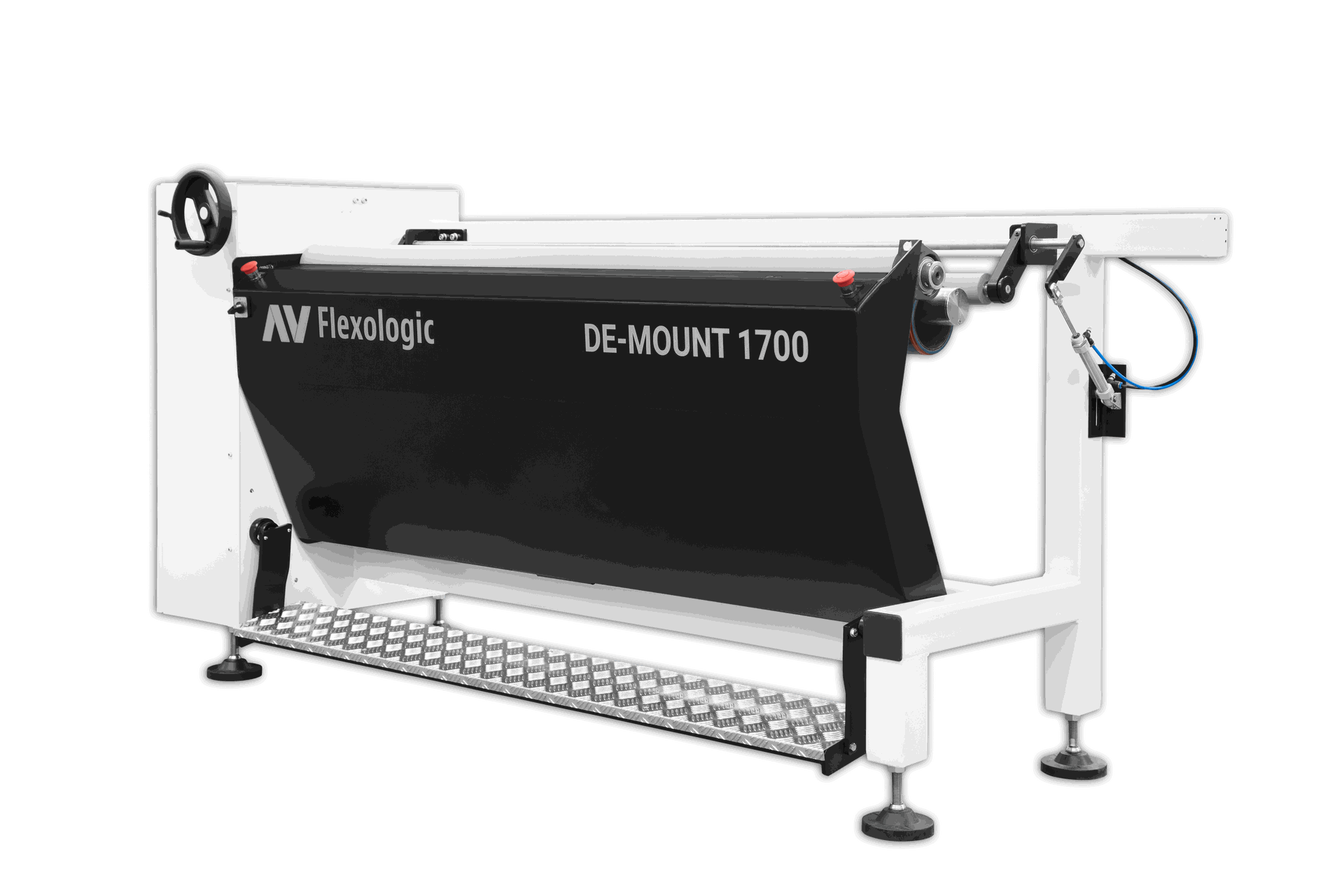

Demounter
The Demounter efficiently removes plates and tape from sleeves without damaging them. Operating the Demounter is very easy and effortless.
View Product

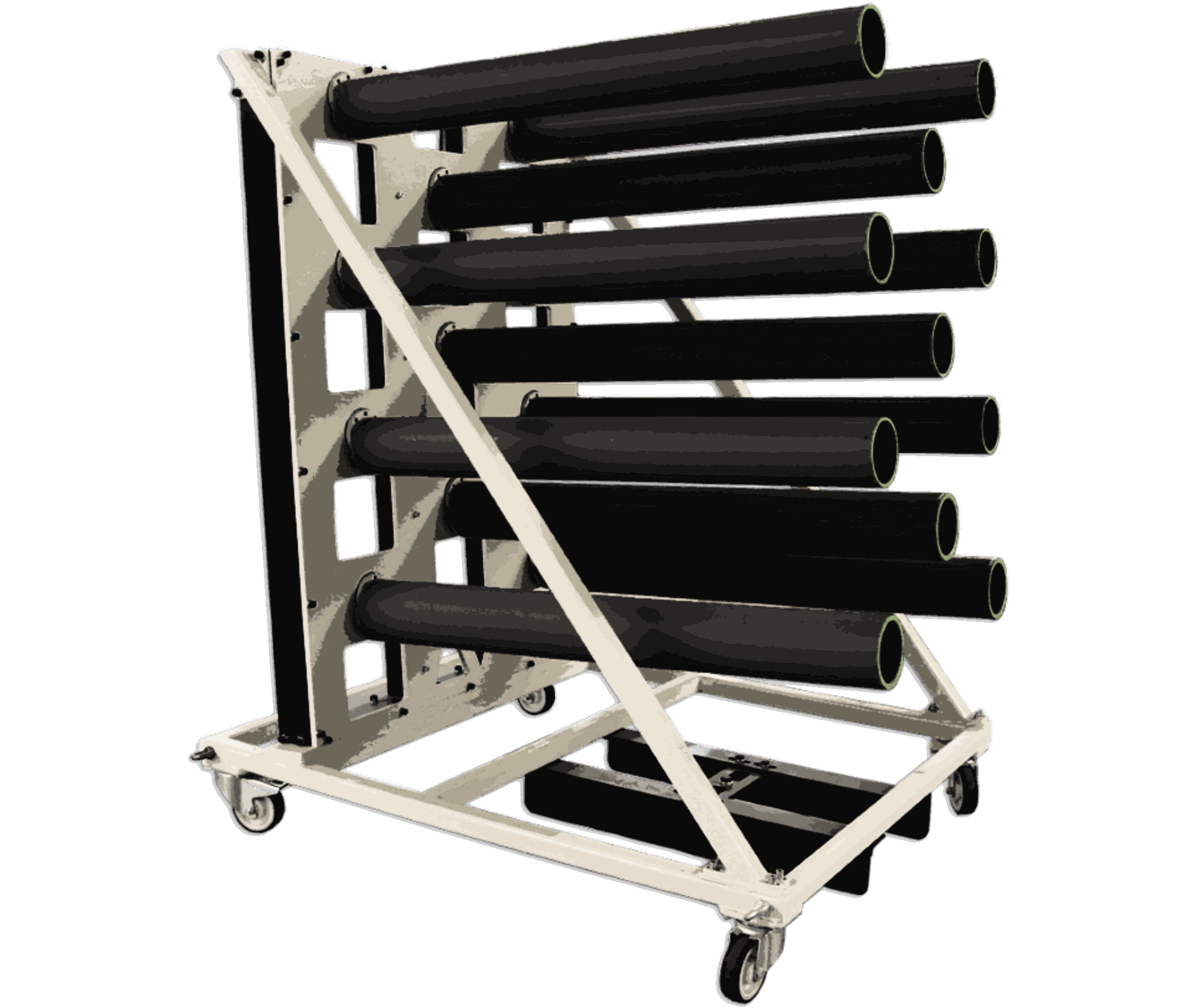

Tech Cart®
The Tech Cart® is used to transport printing sleeves, anilox sleeves and/or bridges with limited physical effort.
View Product

Product Packages

View Brochure
A Complete Solution
Our package offers a competitive, all-inclusive package pricing. By selecting a bundle offer, you gain access to exclusive discounts.
View Product
