Tech Sleeves Portfolio

Solutions that fit your printing requirements

Tech Standard Tech Pro Tech Classic

Find the perfect sleeve for your needs

At Tech Sleeves, we know that one style doesn’t fit all when it comes to flexographic printing. That’s why we’ve designed a comprehensive portfolio of sleeves to meet a wide range of printing requirements. From standard printing needs to high-speed, complex jobs, our sleeves are built for performance, precision, and durability.

Download our Brochure

Explore our range of sleeves

Unlock peak performance on your press with the right formation. Our Tech Sleeves Portfolio provides a comprehensive range, ensuring you have the ideal combination of stiffness, durability, and handling for any job. Compare the reliable Standard, the dynamic Pro, and the robust Classic to select the technology that delivers you quality printing results time after time.

Request More Info

Tech Standard

The Gold Standard in Efficiency

Ideal for: All standard printing applications. The most efficient printing sleeve to get the job done.

Efficiency and Value
5
Glass Fiber Base + Compressible Layer
1x Glass Fiber Layer
1x High-Perf. Foam Layer
Tech Guard (Durable)
Standard
Lightweight

Tech Pro

Optimized for Speed & Complexity

Ideal for: High-speed printing, complex jobs, and maximizing output on new presses.

Speed, Performance & Vibration Damping
7
Glass Fiber Base + Compressible Layer
2x Glass Fiber Layers
2x High-Perf. Foam Layers
Tech Guard (Durable)
Enhanced
Balanced Performance/Weight

Tech Classic

Built for unique print settings

Ideal for: Unique print settings that require exceptional hardness and durability.

Stiffness & Resilience
7
Glass Fiber Base + Compressible Layer
2x Glass Fiber Layers
2x High-Perf. Foam Layers
Vinyl Ester Resin (Hard/Specialized)
High
Optimized for Stability

Tech Standard

The Gold Standard in Efficiency

This sleeve is the perfect balance of performance and cost-efficiency. It features:
  • A lightweight build-up formula for easy handling.
  • One glass fiber internal layer for stability.
  • A 6mm Tech Guard outer layer for enhanced durability.
  1. Glass fiber base sleeve
  2. Compressible layer
  3. High performance foam layer
  4. Glass fiber reinforcement layer
  5. Tech Guard final layer

Tech Pro

Designed for high-speed & complex jobs

Engineered for demanding printing environments, the Tech Pro sleeve offers:
  • Exceptional durability and stiffness for maximized print performance.
  • Conductive properties for enhanced safety.
  • Bounce mitigation for consistent quality at high speeds.
  • 2 or 3 internal glass fiber layers for increased strength.
  • A 6 mm Tech Guard outer layer for robust protection.
  1. Glass fiber base sleeve
  2. Compressible layer
  3. High performance foam layer
  4. Glass fiber reinforcement layer (1)
  5. High performance foam layer
  6. Glass fiber reinforcement layer (2)
  7. Tech Guard final layer

Tech Classic

Built for unique print settings

Tech Classic combines specialized design with optimal hardness, making it perfect for unique and specific print environments:
  • Resin outer layer for maximum durability.
  • 2 or 3 internal glass fiber layers for structural integrity.
  • Yellow sleeve with green foam for easy identification.

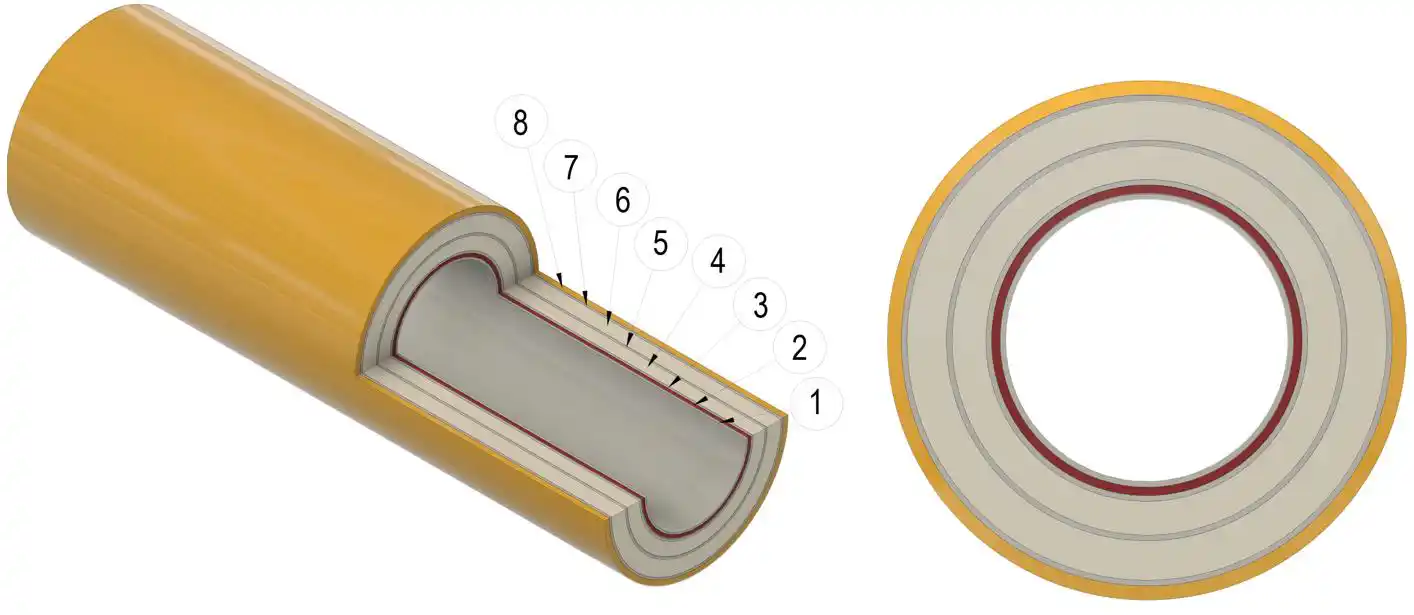

  1. Glass fiber base sleeve
  2. Compressible layer
  3. Glass fiber reinforcement layer (1)
  4. High performance foam layer
  5. Glass fiber reinforcement layer (2)
  6. High performance foam layer
  7. Glass fiber reinforcement layer (3)
  8. Vinyl ester resin outer layer

Customization options for each version to suit your needs

Rubber ends for enhanced durability and protection
Metal Notches for secure sleeve registration

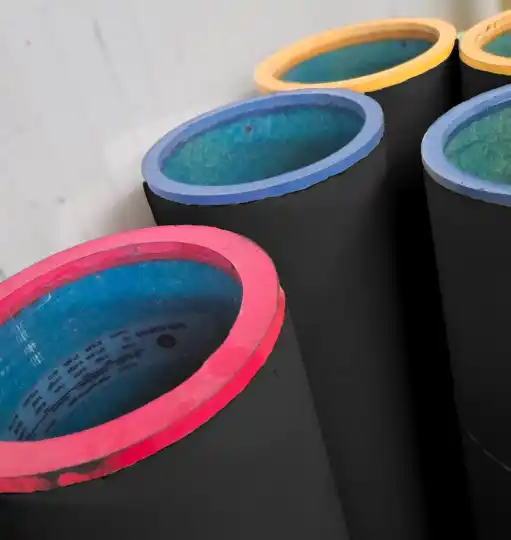

Customized Colored ends for visual workflow management
